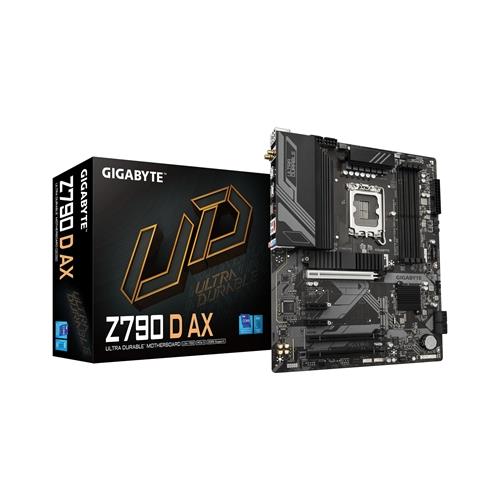

GIGABYTE Z790 D AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
Barcode 04719331860592 · every price below is this exact barcode
Every UK retailer selling this barcode
Retailers we earn a commission from are listed first, in price order, then every other retailer, also in price order. Delivery is shown separately because it changes the real total.
- 01Back to the Office£167.99delivery not statedVisit
- 02eBayCheapest£112.99delivery not statedPrice only
- 03Quzo UK£165.48delivery not statedPrice only
Retailer links are paid links. ASAP holds 3 current UK offers for this barcode; prices were last read from each retailer’s own product feed.
Checked within the last few minutes
Offers read for this barcode at most 5 minutes ago, alongside the daily feed prices above — cached briefly so a busy page doesn’t re-check on every single visit.
Manufacturer specification
Published against this exact barcode, so it describes the item every retailer above is selling — not a similar model.
GIGABYTE Z790 D AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixel
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Compatible processor series
- Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel
- Maximum number of SMP processors
- 1
- Supported processor sockets
- LGA 1700
- Maximum internal memory supported by processor
- 192 GB
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Maximum internal memory
- 192 GB
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- ECC & Non-ECC
- Supported memory clock speeds
- 4400,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
- Supported memory clock speed (max)
- 7600 MHz
- Supported memory module capacities
- 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
- Unbuffered memory
- Yes
- Supported storage drive interfaces
- M.2, SATA III
- Supported storage drive types
- HDD & SSD
- Number of HDDs supported
- 4
- Number of storage drives supported
- 7
- RAID support
- Yes
- RAID levels
- 0, 1, 5, 10
- Parallel processing technology support
- Not supported
- Maximum resolution
- 4096 x 2304 pixels
- HDCP
- Yes
- DirectX version
- 12.0
- Discrete graphics support
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Number of SATA III connectors
- 4
- Total number of SATA connectors
- 4
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Number of EATX power connectors
- 2
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- TPM connector
- Yes
- Thunderbolt headers
- 2
Specification supplied by the manufacturer via the product data catalogue. Check the retailer’s own listing before buying.
